LEVELONE HDMI Cascad Sender RJ45 in/HDMI out/Audio out
|
|
LEVELONE HDMI Cascad Sender RJ45 in/HDMI out/Audio out
|
Beskrivelse
Spesifikasjoner
HVE-9003

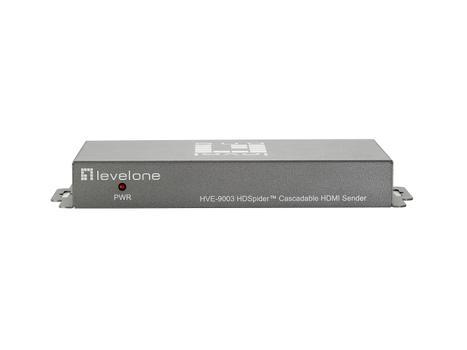

HDSpider™ HDMI Cat.5 Sender (Cascadable)
- HDMI 1.2a compliant
- HDCP compliant
- Works with Cat5, Cat5e, Cat6 Ethernet Cable
- Transmission distance of up to 60 meters
- Minimize the cable skew by adjustable 8-level equalization knob
- Supports 1080p
What is HDMI?
The High-Definition Multimedia Interface (HDMI) is a revolutionary technology that allows viewers to experience the highest quality digital images available. It is able to deliver top-quality video as well as audio over a single cable.
Introducing the HDSpider™ Series from LevelOne
The HDSpider™ Series is a collection of HDMI Cat.5 senders and receivers, offering a full range of HDMI extender solutions. Choose from our 5 different HDSpider extenders to build a flexible network to send your high-quality HDMI signals to greater distances, and at a reduced cost.
What does a Cat.5 sender that is “cascadable” do?
This versatile and robust device is deployed at the HD source, generally connected to an HD player, PS3, or Xbox 360. HVE-9003 accepts the HD signal from the HDMI source and then uses Cat.5 cable to send the HDMI signal to the receiver. 100% adaptable to any network configuration, this sender also works as a receiver! Such flexible deployment means that you can select an infinite amount of HVE-9003s to be used in you’re A/V network. This allows for a cost-effective long range HDMI solution, up to 60 meters between each cascadable device. HVE-9003 also includes a local HDMI port which allows for an additional monitor to be placed next to the device. This is especially useful for deploying an HDMI network that has requires many different displays in one area. HVE-9003 also supports full 1080p resolution.
Surround sound:
HVE-9003 also supports 7.1 multichannel stereo surround sound, providing an easy way to extend the high-quality video of HDMI with the superior 7.1 capabilities of Dolby Digital Plus. To see this device in action, please see the diagram below.
| Modell/Type | AV-sender |
| Maksimal oppløsning | 1920 x 1080 piksler |
| Kabeltyper som støttes | Cat5, Cat5e, Cat6 |
| Maksimal overføring avstand | 60 m |
| Lydsystem | Flerkanal |
| Støttede videofunksjoner | 720p, 1080i, 1080p |
| Største båndbredde for port | 6,75 Gbit/s |
| Båndbredde | 225 MHz |
| HDCP | Ja |
| Produktfarge | Grå |
| RJ-45-inngangsporter | 1 |
| RJ-45-utgangsporter | 1 |
| Antall HDMI-utganger | 1 |
| HDMI-versjon | 1.3c |
| Lydutgang | 1 |
| DC-inngangskontakt | Ja |
| Driftsspenning | 5 V |
| Strøm | 4 A |
| Driftstemperatur (T-T) | 0 - 40 °C |
| Oppbevaringstemperaturomåde (Celsius) | -20 - 60 °C |
| Relativ luftfuktighet under drift (H-H) | 20 - 90% |
| Dimensjoner (B x D x H) | 210 x 108 x 27 mm |
| Bredde | 210 mm |
| Dybde | 108 mm |
| Høyde | 27 mm |
| Vekt | 530 g |
| Pakkebredde | 200 mm |
| Pakkedybde | 320 mm |
| Pakkehøyde | 120 mm |
| Pakkevekt | 1 kg |
| AC-adapter bunt | Ja |
| Bruksanvisning | Ja |
