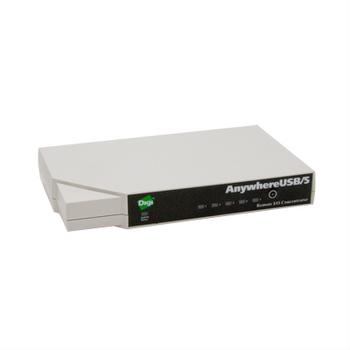

DIGI AnyWhereUSB/ 5 IP MultiHost (AW-USB-5M-W)

DIGI AnyWhereUSB/5 IP MultiHost

27 373,-
21 898,40 ekskl. mva

Ikke på lager
Gi beskjed når varen er på lager
Antall:
Legg i handlekurven
SKU: AW-USB-5M-W
Porter:
5
Display porter:
0
HDMI porter:
0
Nettverk:
1

AnywhereUSB®
Network-attached USB hubs

  • Access and monitor USB and serial devices over TCP/IP network
  • Works with existing POS or other application software
  • Excellent in virtualized environments such as VMware®
  • Creates systems redundancy and increases security
  • Simplifies operations and reduces IT support

AnywhereUSB products are network-attached USB hubs that connect USB peripheral devices to a PC over a Local Area Network. The AnywhereUSB TS model also adds four RS-232 serial ports, enabling the mixing of USB and serial ports over the same network connection. Relocating the host PC to a remote location translates to smaller workstations, enabling deployment without a local PC in kiosks, ATMs, restaurant kitchens, manufacturing lines or any hostile or non-secure area where having a local PC is not practical.

Specifications AnywhereUSB®/2 AnywhereUSB®/5
AnywhereUSB®/5 Gen 2		 AnywhereUSB® TS AnywhereUSB®/14
Interfaces
10/100Base-T Ethernet 1 RJ-45 2 RJ-45
USB 2 5 4 14
Serial N/A N/A 4 RS-232 RJ-45 1 RS-232 DB9
Features
IP Address 1 static (fixed) address per unit
LEDs System and Port status
Power Supply AnywhereUSB/2, AnywhereUSB/5 Gen 2, AnywhereUSB TS: Ships with 120-240VAC 50-60 Hz at 5VDC@ 3 amps max w/ locking barrel AnywhereUSB/5 Gen 1: Ships with 100-240VAC 50-60 Hz at 5VDC @ 3 amps max 50-60Hz @ 8 Amps max Includes 2 120-230VAC 50-60 Hz @8 amps max
Management CLI and AnywhereUSB web configuration tool (excluding AnywhereUSB/5 Gen 1)
Other Shared Features Remote configuration utility; Multiple units supported per server; Field-upgradable software and firmware; Patented RealPort (serial over IP) and RealPort USB (USB over IP)
Serial Data Rates N/A Up to 230 Kbps per port
USB Downstream Power 500 mA per USB device
USB Compatibility USB 1.0, 1.1, 2.0 (USB 2.0 devices operate at 1.1 speed)
Operating Systems Windows® 7, Windows Vista®, Windows Server® 2008, Windows Server 2008 R2, Windows Server 2003, Windows® XP, Windows XP Embedded
Multi-Host Connections N/A Yes
Dimensions
(L x W x H)		 2.38 in x 3.9 in x 1.0 in
(6.04 cm x 10.0 cm
x 2.54 cm)		 4.35 in x 7.20 in x 1.03 in
(11.05 cm x 18.29 cm 2.61 cm)		 4.97 in x 17.00 in x 1.74 in
(12.62 cm x 43.18 cm x 4.42 cm), Rack mountable 1U
Weight 5.0 oz (141.8 g) 10.0 oz (283.5 g) 40 oz (1134 g)
Environmental
Operating Temperature 32º F to 140º F (0º C to 60º C) 32° F to 131° F
(0° C to 55° C)
Storage Temperature -40° F to +185° F (-40° C to +85° C)
Relative Humidity 0% to 95% (non-condensing)
Network and Device Recommendations
Network Type 10/100 Mb switched Ethernet Dual 10/100 Mb switched Ethernet
USB Device Types Compatible with bulk or interrupt type USB devices; Isochronous devices not supported
Regulatory Approvals
Safety UL 1950/CSA 2.2 No. 950, EN60950, IEC-950
Emissions/Immunity CE, FCC Part 15 (Class B), EN55022, EN55024

Tilkoblingsevne
Antall porter
5
Grensesnitt (hub)
USB 2.0
Antall USB 2.0-porter
5
Antall ethernets-/bredbåndstilkoblinger (RJ-45)
1
Egenskaper
Overføringshastighet (Mbps)
480 Mbit/s
Produktfarge
Grå
LED-indikatorer for kommunikasjon
Ja
ISV-sertifiseringer
CE, FCC Part 15 (Class B), EN55022, EN55024
Nettverksbygging
Nettverksstandard
IEEE 802.3,IEEE 802.3u
Energihåndtering
Strømstyrke
100 - 240 V
Vekselstrøm frekvens
50 - 60 Hz
Systemkrav
Støttede Windows operativsystemer
Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Vekt og dimensjoner
Bredde
182,9 mm
Dybde
110,5 mm
Høyde
26,1 mm
Vekt
283,5 g
Miljømessige forhold
Driftstemperaturområde
0 - 60 °C
Oppbevaringstemperaturomåde (Celsius)
-40 - 85 °C
Luftfuktighetsområde ved drift
0 - 95%
Andre funksjoner
Sikkerhet
UL 1950/CSA 2.2 No. 950, EN60950, IEC-950
Se mer Hubs/Splitters fra DIGI her
