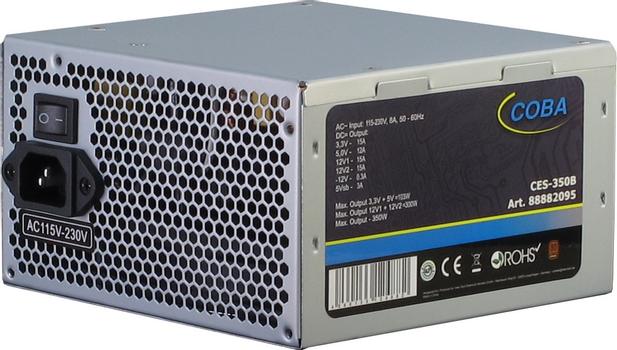

INTER-TECH COBA CS-350B 350W 80+BRONZE PSU CPNT
SKU:
88882095
80 PLUS certification:
80 PLUS Bronze
-
The Coba CES-350B 80+ is specifically designed for the demands of assemblers. As a mere bulk product it saves the cost for the retail packages which naturally has a positive effect on the final price.
For the same reason Inter-Tech choose a plain design to place the main priorities on the technical aspects. Whether it is the super silent 120mm fan, the big numbers of connectors (P4+4, PCI-Express etc.) or the two separated 12V-lines, Coba CES-350B 80+ will satisfied all demands.
To prove its high quality standards the power supply has fulfilled all requirements for the 80PLUS® certification. That means that a high efficiency of the power supply is guaranteed and this is not only good for the environment but also helps to safe your money.
|
Total strøm 350 W |
AC inngangspenning 115 - 230 V |
Vekselstrøm frekvens 50 - 60 Hz |
Innput-strøm 8 A |
Maksimum inngående strøm (@110V) +3.3V,+5Vsb,+12V1,-12V,+12V2,+5V |
Power Factor Correction (PFC) type Aktiv |
Kombinert strøm (+3.3V) 103 W |
Kombinert strøm (+5V) 103 W |
Max output current (+3.3V) 15 A |
Max output current (+12V1) 15 A |
Max output current (+12V2) 15 A |
Max output current (+5V) 12 A |
Max output current (-12V) 0,3 A |
Max output current (+5Vsb) 2,5 A |
Strømbeskyttelsesfunksjoner Over-spenning (volt), Overstrøm, Kortslutning |
|
Strømkontakt for hovedkort 20+4 pin ATX |
Antall SATA-strømtilkoblinger 3 |
Perifere (Molex) strømkontakter (4-pin) 2 |
PCI Express-strømtilkobling (6+2-pin) 1 |
CPU strømtilkobling (4+4-pin) |
ATX strømtilkobling (20+4-pin) |
|
Formål PC |
Strømforsyningsenhetens formfaktor ATX |
80 PLUS sertifisering 80 PLUS Bronze |
ATX-versjon 2.3 |
Støynivå 25 dB |
RoHS-overholdelse |
|
Produktfarge Sølv |
Form for nedkjøling Aktiv |
Vifte diameter 12 cm |
Antall vifter 1 vifter |
Vifteposisjon Side |
Av/på-bryter |
|
Bredde 150 mm |
Dybde 140 mm |
Høyde 86 mm |
