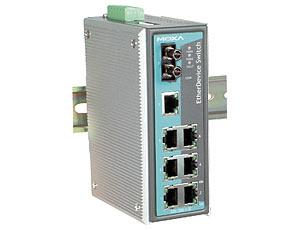

MOXA Network Switch Unmanaged (EDS-308-MM-ST)

MOXA Network Switch Unmanaged

Varenr.:
EDS-308-MM-ST
EAN:
5703431407633
  • Produkt Uhåndtert
  • Porter 6
  • Hastighet 100Mbps
9 215,-
7 372,- ekskl. mva
Ikke på lager
Gi beskjed når varen er på lager
Antall:
Legg i handlekurven
Beskrivelse
Spesifikasjoner

EDS-305/308 Series

5 and 8-port unmanaged Ethernet switches

Features and Benefits

  • Redundant dual 24 VDC power inputs
  • Relay output warning for power failure and port break alarm
  • Broadcast storm protection
  • Transmits VLAN tag packets transparently
  • -40 to 75˚C operating temperature range (T models)

Introduction

The EDS-305/308 are 5 and 8-port Ethernet switches that provide an economical solution for your industrial Ethernet connections. The built-in relay warning function alerts network engineers when power failures or port breaks occur, and the switches are designed for harsh industrial environments, such as in hazardous locations (Class 1 Div. 2/Zone 2). The switches comply with FCC, TÜV, UL, and CE standards, and come in two model types: standard operating temperature range of 0 to 60°C, and extended operating temperature range of -40 to 75°C. Both models undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control. The EDS-305/308 series switches can be installed easily on a DIN-Rail or in a distribution box.

•  Technology:
Standards IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X), 100BaseFX,
IEEE 802.3x for Flow Control
Processing Type Store and Forward
Flow Control IEEE802.3x full duplex, back pressure flow control
•  Interface:
RJ45 Ports 10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
Fiber Port(s) 100BaseFX ports (SC/ST connector)
LED Indicators PWR1, PWR2, Fault, 10/100M (TP port), and 100M (Fiber port)
DIP Switches Port break alarm mask
Alarm Contact One relay output with current carrying capacity of 1A @ 24 VDC
•  Physical Characteristics:
Enclosure IP30 protection, metal case
Weight 630 g
Dimensions 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Installation DIN-Rail or Wall Mounting (optional kit)
•  Environmental Limits:
Operating Temperature 0 to 60°C (32 to 140°F)
-40 to 75°C (-40 to 167°F) for T models
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
•  Power Requirements:
Input Voltage 24 VDC (12 to 48VDC), redundant inputs
Input Current (@24V) 0.13A (EDS-308), 0.25A (EDS-308-M, EDS-308-S, EDS-308-MM, EDS-308-SS), 0.13A (EDS-305), 0.17A (EDS-305-M, EDS-305-S)
Overload Current Protection 1.6A (EDS-308-M, EDS-308-S, EDS-308-MM, EDS-308-SS)
1.1A (EDS-305, EDS-305-M, EDS-305-S, EDS-308)
Connection Removable 6-pin terminal block
Reverse Polarity Protection Present
•  Agency Approvals:
EMI FCC Part 15, CISPR (EN55022) class A
EMS EN61000-4-2 (ESD), level 3
EN61000-4-3 (RS), level 3
EN61000-4-4 (EFT), level 3
EN61000-4-5 (Surge), level 3
EN61000-4-6 (CS), level 3
Safety UL508, UL60950-1, CSA C22.2 No.60950-1, EN60950-1
Hazardous Location UL/cUL Class 1, Division 2, Groups A, B, C and D;
ATEX Class I, Zone 2, Ex nC IIC(EDS-308 Pending)
Shock IEC60068-2-27
Freefall IEC60068-2-32
Vibration IEC60068-2-6
MTBF (meantime between failures) EDS-305 series: 422,000 hrs
EDS-308 series: 255,000 hrs
Database: MIL-HDBK-217F, GB 25˚C
Maritime DNV, GL
•  Warranty:
Warranty Period 5 years

  Model No. Description

EDS-305

 Unmanaged Ethernet Switch with 5 10/100BaseT(X) ports, 0 to 60°C

EDS-305-M-SC

 Unmanaged Ethernet Switch with 4 10/100BaseT(X) ports, 1 multi mode 100BaseFX port, SC connector, 0 to 60°C

EDS-305-M-ST

 Unmanaged Ethernet Switch with 4 10/100BaseT(X) ports, 1 multi mode 100BaseFX port, ST connector, 0 to 60°C

EDS-305-S-SC

 Unmanaged Ethernet Switch with 4 10/100BaseT(X) ports, 1 single mode 100BaseFX port, SC connector, 0 to 60°C

EDS-305-S-SC-80

 Unmanaged Ethernet Switch with 4 10/100BaseT(X) ports, 1 long-haul (80km) single mode 100BaseFX port, SC connector, 0 to 60°C

EDS-308

 Unmanaged Ethernet Switch with 8 10/100BaseT(X) ports, 0 to 60°C

EDS-308-M-SC

 Unmanaged Ethernet Switch with 7 10/100BaseT(X) ports, 1 multi mode 100BaseFX port, SC connector, 0 to 60°C

EDS-308-MM-SC

 Unmanaged Ethernet Switch with 6 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports, SC connector, 0 to 60°C

EDS-308-MM-ST

 Unmanaged Ethernet Switch with 6 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports, ST connector, 0 to 60°C

EDS-308-S-SC

 Unmanaged Ethernet Switch with 7 10/100BaseT(X) ports, 1 single mode 100BaseFX port, SC connector, 0 to 60°C

EDS-308-SS-SC

 Unmanaged Ethernet Switch with 6 10/100BaseT(X) ports, 2 single mode 100BaseFX ports, SC connector, 0 to 60°C

EDS-308-S-SC-80

 Unmanaged Ethernet Switch with 7 10/100BaseT(X) ports, 1 long-hual (80 km) single mode 100BaseFX port, SC connector, 0 to 60°C

EDS-308-SS-SC-80

 Unmanaged Ethernet Switch with 6 10/100BaseT(X) ports, 2 long-haul (80 km) single mode 100BaseFX ports, SC connector, 0 to 60°C
  Model No. Description

EDS-305-T

 Unmanaged Ethernet Switch with 5 10/100BaseT(X) ports, -40 to 75°C

EDS-305-M-SC-T

 Unmanaged Ethernet Switch with 4 10/100BaseT(X) ports, 1 multi mode 100BaseFX port, SC connector, -40 to 75°C

EDS-305-M-ST-T

 Unmanaged Ethernet Switch with 4 10/100BaseT(X) ports, 1 multi mode 100BaseFX port, ST connector, -40 to 75°C

EDS-305-S-SC-T

 Unmanaged Ethernet Switch with 4 10/100BaseT(X) ports, 1 single mode 100BaseFX port, SC connector, -40 to 75°C

EDS-308-T

 Unmanaged Ethernet Switch with 8 10/100BaseT(X) ports, -40 to 75°C

EDS-308-M-SC-T

 Unmanaged Ethernet Switch with 7 10/100BaseT(X) ports, 1 multi mode 100BaseFX port, SC connector, -40 to 75°C

EDS-308-MM-SC-T

 Unmanaged Ethernet Switch with 6 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports, SC connector, -40 to 75°C

EDS-308-MM-ST-T

 Unmanaged Ethernet Switch with 6 10/100BaseT(X) ports, 2 multi mode 100BaseFX ports, ST connector, -40 to 75°C

EDS-308-S-SC-T

 Unmanaged Ethernet Switch with 7 10/100BaseT(X) ports, 1 single mode 100BaseFX port, SC connector, -40 to 75°C

EDS-308-SS-SC-T

 Unmanaged Ethernet Switch with 6 10/100BaseT(X) ports, 2 single mode 100BaseFX ports, SC connector, -40 to 75°C

EDS-308-S-SC-80-T

 Unmanaged Ethernet Switch with 7 10/100BaseT(X) ports, 1 long-hual (80 km) single mode 100BaseFX port, SC connector, -40 to 75°C

EDS-308-SS-SC-80-T

 Unmanaged Ethernet Switch with 6 10/100BaseT(X) ports, 2 long-haul (80 km) single mode 100BaseFX ports, SC connector, -40 to 75°C
