MOXA Network Switch Unmanaged
|
|
MOXA Network Switch Unmanaged
-
Produkt
Uhåndtert
-
Porter
6
-
Hastighet
1Gbps
|
Beskrivelse
Spesifikasjoner

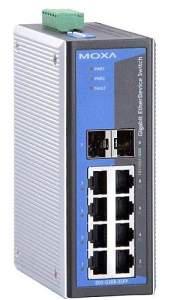

EDS-G308-2SFP
Unmanaged full Gigabit Ethernet switch with 6 10/100/1000BaseT(X) ports, and 2 combo 10/100/1000BaseT(X) or 100/1000BaseSFP slots for adding SFP-1G/1FE series Gigabit/fast Ethernet modules, 0 to 60°C operating temperature
EDS-G308 Series
8G-port full Gigabit unmanaged Ethernet switches
The EDS-G308 series are equipped with 8 Gigabit Ethernet ports and up to 2 fiber optic ports, making them ideal for applications that demand high bandwidth. The EDS-G308 switches provide an economical solution for your industrial Gigabit Ethernet connection, and the built-in relay warning function alerts network managers when power failures or port breaks occur. The EDS-G308 series includes 2 models: one with an operating temperature range of 0 to 60°C, and the other one with an extended operating temperature range of -40 to 75°C. Both models undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The EDS-G308 switches can be installed easily on a DIN-Rail or in distribution boxes.
Features
- 8 Gigabit Ethernet ports
- Fiber optic options for extending distance and electrical noise immunity
- Redundant dual 12/24/48 VDC power inputs
- Relay output warning for power failure and port break alarm
- Broadcast storm protection
- -40 to 75˚C operating temperature range (T models)
Specifications
| • Technology: |
| Standards |
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX/EZX
IEEE 802.3x for Flow Control |
| Processing Type |
Store and Forward |
| Flow Control |
IEEE 802.3x flow control, back pressure flow control |
| • Interface: |
| RJ45 Ports |
10/100/1000BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection |
| Fiber Port(s) |
100/1000BaseSFP slot |
| LED Indicators |
PWR1, PWR2, FAULT, 10/100/1000M |
| DIP Switches |
One for port break alarm, one for Enable/Disable broadcast storm protection |
| Alarm Contact |
1 relay output with current carrying capacity of 1A @ 24 VDC |
| • Physical Characteristics: |
| Housing |
Metal, IP30 protection |
| Weight |
630 g |
| Dimensions |
53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) |
| Installation |
DIN-Rail mounting, wall mounting (with optional kit) |
| • Environmental Limits: |
| Operating Temperature |
Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| • Power Requirements: |
| Input Voltage |
12/24/48 VDC (9.6 to 60 VDC), redundant inputs |
| Input Current |
EDS-G308: 0.32 A @ 24 V
EDS-G308-2SFP: 0.34 A @ 24 V |
| Connection |
1 removable 6-contact terminal block |
| Reverse Polarity Protection |
Present |
| • Agency Approvals: |
| EMI |
FCC Part 15, CISPR (EN55022) class A |
| EMS |
EN61000-4-2 (ESD), level 3
EN61000-4-3 (RS), level 3
EN61000-4-4 (EFT), level 3
EN61000-4-5 (Surge), level 3
EN61000-4-6 (CS), level 3 |
| Safety |
UL508 (Pending) |
| Hazardous Location |
UL/cUL Class I, Division 2, Groups A, B, C, and D (Pending); ATEX Zone 2, Ex nC IIC (Pending) |
| Shock |
IEC 60068-2-27 |
| Freefall |
IEC 60068-2-32 |
| Vibration |
IEC 60068-2-6 |
| MTBF (meantime between failures) |
Time: 325,000 hrs (EDS-G308 series)
Database: Telcordia (Bellcore), GB |
| Maritime |
DNV (Pending), GL (Pending) |
| Svitsjtype | Uhåndtert |
| Antall Basic switching RJ-45 Ethernet-ports | 6 |
| Fibre Channel-porter | 2 |
| Strømtilkobling | DC-inngang |
| Nettverksstandard | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| 10G støtte | Nei |
| Ethernet-kobberkabelteknologi | 1000BASE-TX,100BASE-TX,10BASE-T |
| Full tosidig | Ja |
| Strømningskontroll støtte | Ja |
| Auto MDI/MDI-X | Ja |
| Ethernet-fiberkabelteknologi | 1000BASE‑LX,100BASE-FX |
| Støttede dataoverføringsrater | 10/100/1000 Mbps |
| Maksimal dataoverføringshastighet | 1 Gbit/s |
| Bufferminne pakke | 0,13 MB |
| Sikkerhet | UL508 |
| ISV-sertifiseringer | FCC, CISPR |
| Gjennomsnittstid mellom feil (MTBF) | 325000 timer |
| Redundant strømforsyning | Ja |
| Innput-strøm | 0.34 A |
| Strøm over Ethernet (PoE) | Nei |
| Driftstemperaturområde | 0 - 60 °C |
| Oppbevaringstemperaturomåde (Celsius) | -40 - 85 °C |
| Luftfuktighetsområde ved drift | 5 - 95% |
| Vekt | 630 g |
| Fysiske mål (BxDxH) | 53,6 x 135 x 105 mm |
| Tilkoblingsteknologi | Koblet med ledninger (ikke trådløs) |
| Type strømforsyning | VDC |
| Nettverksgrensesnitt | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Monteringsmulighet | Ja |
| Inngangsstrøm | 24 V |
| Elektromagnetisk stråling | EN61000-4-2 (ESD), lvl 3; EN61000-4-3 (RS), lvl 3; EN61000-4-4 (EFT), lvl 3; EN61000-4-5 (Surge), lvl 3; EN61000-4-6 (CS), lvl 3 |
| Monteringsgrensesnitt | DIN-Rail |
| Tilkoblingsdioder | 1 |
| Sjokk | IEC 60068-2-27 |
